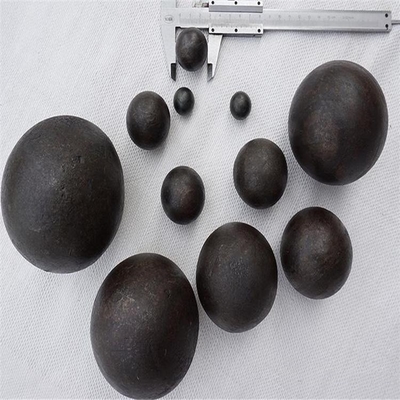

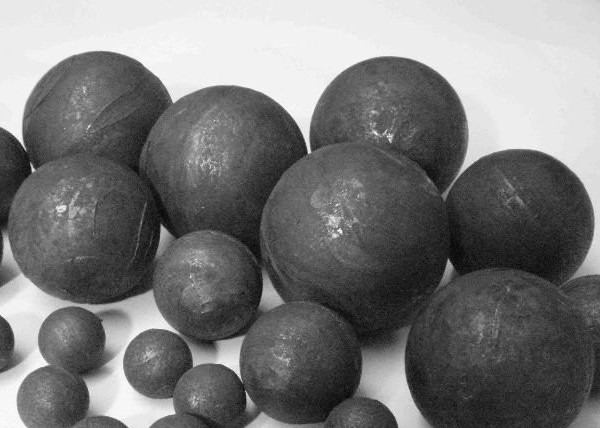

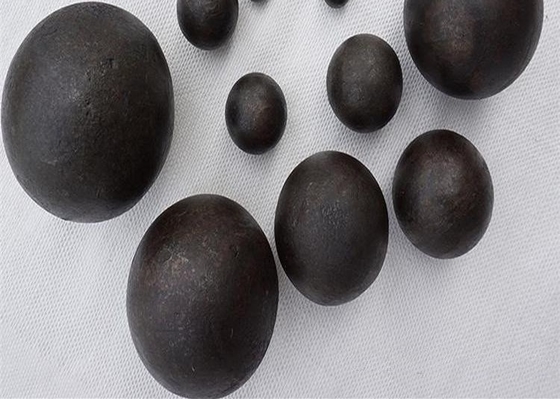

Name: Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready
Brand: Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd
SKU: di acciaio, di acciaio inossidabile
Price: 615.00 USD
Availability: InStock

Casa Prodotti Sfere d'acciaio a laminazione a caldo

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready

Dettagli:

Luogo di origine:	Città di Jinan, provincia di Shandong, Cina
Marca:	ZW
Certificazione:	ISO9001:2008
Numero di modello:	di acciaio, di acciaio inossidabile

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 tonnellate
Prezzo:	USD 550-680/Ton
Imballaggi particolari:	borse del contenitore, tamburo d'acciaio
Tempi di consegna:	21 giorni dopo la conferma dell'ordine
Capacità di alimentazione:	Produzione annua 80000 tonnellate

Contatto

Descrizione di prodotto dettagliata

Dimensione:

Costume

Composizione chimica:

C: 0,52-0,65%, Si: 0,15-0,37%, Mn: 0,6-1,2%, P: ≤0,025%, S: ≤0,025%

Forma:

Girare

Categoria:

Testatori di durezza

Evidenziare:

heat-treated forged steel balls

cement plant steel balls

hot rolling steel balls

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready

Description:

Product Features:

1.The breakage rate less than 1.0%, crush resistance is generally cast ball more than 10 times.
2.The impact toughness of high impact toughness than 12J/cm2: 8 meters, more than 20000 times of falling ball experiment.
3.The high hardness, the surface hardness from 42-68 HRC.
4.No deformation,not out of roundness.
5.Compact structure, high performance-price ratio.

Material	Chemical Elements
Material	C	Si	Mn	P/S	Cr	Hardness (HRC)
45#	0.42-0.50	0.17-0.37	0.5-0.8	<0.035	<0.25	60-65
60MN	0.55-0.65	0.17-0.37	0.7-1.0	<0.04	<0.25	58-63
B2	0.72-0.85	0.17-0.37	0.7-1.0	<0.04	0.4-0.6	55-58
B3	0.58-0.66	1.3-1.9	0.65-0.8	<0.025	0.7-0.9	56-65
B6	0.97-1.03	0.2-0.3	1.0-1.1	<0.025	0.5-0.6	61-65

Hardness

Material	25mm-50mm HRC		60mm-90mm HRC		100mm-125mm HRC		130-150mm HRC
Material	Surface	Core	Surface	Core	Surface	Core	Surface	Core
C45	55-58	55-58	50-68	23-30	48-52	22-26	48-52	22-25
60Mn	58-62	55-60	58-62	30-36	57-61	26-32	57-61	26-30
B2	60-64	58-64	57-64	45-60	55-60	38-48	55-60	38-42
B3	62-65	60-65	60-65	58-65	56-65	50-62	56-63	50-55
B6	62-65	60-65	61-65	58-65	60-63	50-62	61-63	50-55

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 0

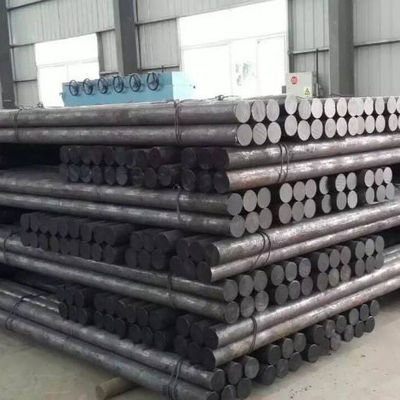

Raw Material:

Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest

factory group in North of China.

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 1

Prodcution Line:

1.Traditional Hammer Forging:

Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing

2. Hot Rolling

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 2

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 3

Testing:

1.Surface quality inspection.
2.Size.
3.Surface hardness test.
4.Core pulling the volume hardness test.
5. The impact toughness test.
6. Metallographic examination.
7. Drop test.

Packing:

Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 4

Certificate:

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 5

Company Profile:

Our company is located in Zhangqiu ,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation. Our company covers an area of 15,000 square meters,with two million registered capital .And there are 150 existing staff,including 21 technicians.
Our main products: forging grinding steel balls,and (high,low,medium) chrome alloyed casting iron balls,casting cylpebs,grinding rods.

Application of our products: various mines,cement plants,power stations and chemical industries.

Priorities of our products: High hardness, good wear resistance, breakage rate lower than 1%.

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 6

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 7

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 8
